So How Do You Use A Constant Speed Prop On A Flight? In most cases, you takeoff and land with the prop control full forward, which means your propeller is in the flat, low pitch/high RPM setting. Having your prop in that position gives you a lot of takeoff power.

In what position is the constant-speed propeller placed to check the magnetos?

C- port governor oil pressure from the cylinder of the propeller. 101 (8981) - In what position is the constant-speed propeller control placed to check the magnetos? C- Full increase, low propeller blade pitch angle.

What propeller pitch is best for take off?

"Fine" pitch refers to a fine or low pitch angle which yields good low speed acceleration (takeoff and climb) whereas "coarse" refers to a coarser or higher pitch angle which yields optimum high speed performance and fuel economy (cruise).

Why do you place the propeller in low pitch for take off?

A lower pitch allows the blade to spin faster (ω) for the same torque (T). The relationship between power (P) and speed and torque is P=Tω, so this means that for the same T we get more power out of the prop when it spins at a faster ω.

How is the speed of a constant speed propeller changed in flight?

How is the speed of a constant-speed propeller changed in flight? By changing the load tension against the flyweights in the governor.

Constant Speed Prop: What You NEED to Know | Part 1

Why is a constant speed propeller more efficient?

A Constant Speed Propeller is more efficient than Fixed Pitch Propellers because it allows for the engine to operate at the most efficient RPM for given conditions. By operating the engine at the most efficient RPM, pilots can improve fuel efficiency, increasing range.

What is a constant speed?

An object is travelling at a steady or constant speed when its instantaneous speed has the same value throughout its journey. For example, if a car is travelling at a constant speed the reading on the car's speedometer does not change.

How would you describe constant speed?

Definition: When the speed of an object remains the same - it does not increase or decrease - we say it is moving at a constant speed.

How do you find the pitch constant of a propeller?

Each radius of the blade can have a different pitch and therefore the pitch at r/R = 0.7 is often used as a representative value (the nominal pitch). The pitch ratio of a propeller is the mean pitch divided by its diameter.

What propeller pitch is for speed?

The lower the prop pitch, the better your hole-shot. However, this comes at a price: top speed. The lower pitch makes the engine reach maximum rpm at slower speeds. Conversely, a higher pitch will deliver greater top speeds, but slower acceleration.

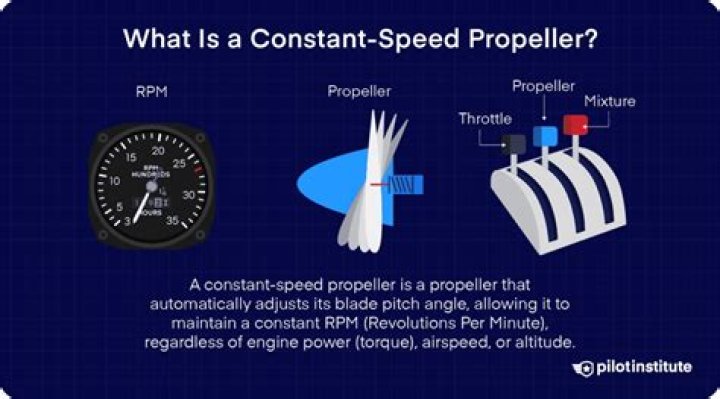

What is constant speed propeller in aviation?

A constant speed propeller is a propeller that is designed to automatically change its blade pitch to allow it to maintain a constant RPM, irrespective of the amount of engine torque being produced or the airspeed or altitude at which the aircraft is flying.

What is pitch setting?

Pitch setting means the propeller blade setting as determined by the blade angle measured in a manner, and at a radius, specified by the instruction manual for the propeller.

What is N1 and N2 in aviation?

N1 and N2 express the rotational speed of turbine engines as a percentage of the maximum normal operating RPM. N1 is the speed of the low pressure spool and serves as the primary power setting, and N2 is the speed of the high pressure spool which indicates if aircraft systems have sufficient power.

How do you operate an engine equipped with a constant speed propeller?

How is engine operation controlled on an engine equipped with a constant-speed propeller? The throttle controls power output as registered on the manifold pressure gauge and the propeller control regulates engine RPM.

What is the flux direction when the magnet North Pole Position is full register to the pole shoe?

When the magnet is aligned with the pole shoes the magneto is said to be in the full register position and maximum magnetic flux passes through the core from the north pole to the south pole. As the magnet rotates through 90° no magnetic flux able to pass through the coil core.

What travels at a constant speed?

If the speed of an object does not change during its motion, the object is traveling at a constant speed. Most cars are equipped with cruise control. Cruise control allows a car to travel at a constant speed. Most objects do not move at a constant speed very long.

Is constant speed initial or final velocity?

The initial velocity of each object is the same as the final velocity is the same as every velocity in between. The velocity of each of these objects is constant during this ten second interval. In comparison, when the curve on a velocity-time graph is straight but not horizontal, the velocity is changing.

Why do we use constant speed?

To have a constant velocity, an object must have a constant speed in a constant direction. Constant direction constrains the object to motion to a straight path. Newton's second law (F=ma ) suggests that when a force is applied to an object, the object would experience acceleration.

Is a constant speed acceleration?

The velocity vector is constant in magnitude but changing in direction. Because the speed is constant for such a motion, many students have the misconception that there is no acceleration. ... For this reason, it can be safely concluded that an object moving in a circle at constant speed is indeed accelerating.

Does constant speed mean constant velocity?

To have a constant velocity, an object must have a constant speed in a constant direction. Constant direction constrains the object to motion in a straight path thus, a constant velocity means motion in a straight line at a constant speed.

What is the primary advantage of a constant speed variable pitch propeller?

What is the primary advantage of a constant-speed (variable pitch) propeller? To obtain a pitch setting that is suitable for each flight situation and power setting. Why does the blade angle of a propeller change from root to tip? To compensate for the increased velocity of the blade tip.

What is the difference between variable pitch propeller and constant speed propeller?

A variable pitch propeller is one in which the pilot is able to adjust the blade pitch during flight. ... A more sophisticated variant of the variable pitch propeller is the constant speed propeller which, while in flight, will maintain the same RPM irrespective of throttle lever movement or airspeed.

What is the source of oil for constant speed propeller operation?

The oil from the governor is supplied to the propeller and hydraulic piston through a hollow engine shaft. Increasing the volume of oil within the piston and cylinder decreases the blade angle and increases propeller rpm. If governor-supplied oil is lost during operation, the propeller increases pitch and feather.
