A valve grind (commonly referred to as a valve job or valve lap) can be crucial for proper functioning valves/seals. It is the process of smoothing out the engine valves so that they are effectively able to seal in the valve seat in the cylinder head to completely seal the engine's combustion chamber.

What is valve grinding machine?

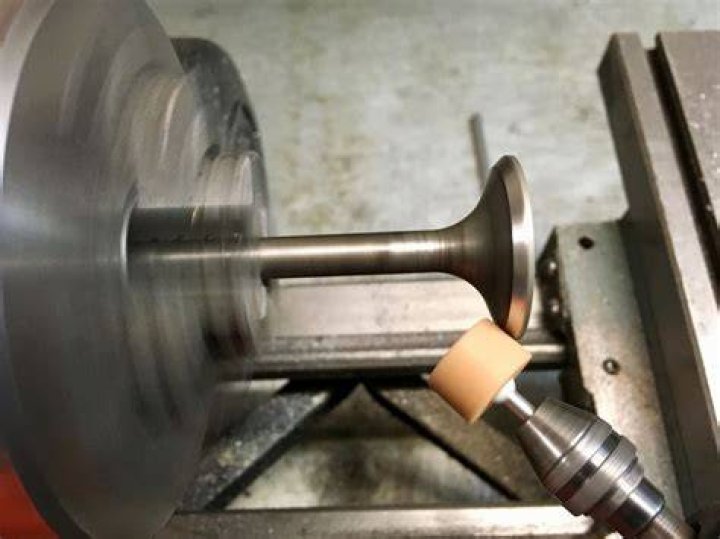

A Valve Seat Grinding Machine is an operation which is performed on any four stroke cycle, internal combustion engine, the purpose of which is to resurface the mating surfaces of the poppet valves and their respective valve seats that control the intake and exhaust of the air/fuel mixture that powers the motion of the ...

Can you grind valve tips?

It is fine to grind the stems. This is normal practice. Machine shop should be able to adjust them either with shims or by grinding the valve stems down.

How long does it take to grind valves?

The lapping process for each valve should take less than a minute if the valve seat and face were ground correctly.

Why do valves grind?

A valve grind (commonly referred to as a valve job or valve lap) can be crucial for proper functioning valves/seals. It is the process of smoothing out the engine valves so that they are effectively able to seal in the valve seat in the cylinder head to completely seal the engine's combustion chamber.

How-To: Lap Valves (by hand and drill method explained)

What is a valve grinder used for?

This machine is special for grinding the valves in internal combustion engines (the valves in engines on automobiles and tractors), featuring small size, flexible and easy operation.

What is a valve Refacer?

The valve refacer … the machine that makes a good valve job a great valve job! ... All valve refacers do basically the same thing – they grind valves. But, not all valve refacers grind the valves correctly. There are a few basic points of maintenance that hold true for all valve refacers. First, start with a clean machine!

How do you use valve grinding paste?

1. Apply a small amount of paste to valve seat.
2. Avoid contact of the grinding paste with the valve stem and guide.
3. Grind the valve in the normal manner until a uniform seat of the desired appearance is obtained.

What does a valve guide do?

A valve guide is a cylindrical piece of metal, pressed or integrally cast into the cylinder head, with the valve reciprocating inside it. Guides also serve to conduct heat from the combustion process out from the exhaust valve and into the cylinder head where it may be taken up by the cooling system.

Why is valve lapping done?

The disc and nozzle relief valve that has been checked if it looks scratched or the surface of the seat is not flat then the seat or nozzle must be turned first, to smooth the results of the lathe then we do lapping.

What do you mean by lapping?

Lapping is a machining process in which two surfaces are rubbed together with an abrasive between them, by hand movement or using a machine. This can take two forms. ... The other form of lapping involves a softer material such as pitch or a ceramic for the lap, which is "charged" with the abrasive.

What is lapping paste?

Lapping paste is a mixture of hard abrasive particles in a suitable base. The base can be oil-based like grease or water soluble lubricant. ... Lapping pastes are used for controlled removal and are used for the close mating of surfaces and for removing rust and the brightening of a metal surface.

How does a valve seat work?

The valve seat is a surface inside the body of a valve that comes into contact with the disk, which is a moveable component that restricts and allows flow through the valve. It has several important purposes, including the following: Preventing compressed or combustion gasses from getting into the manifold.

How are valve seats installed?

1. PREPARATION AND WATER SHUTOFF. Take the original valve seat to the store to get the right replacement part. ...
2. REMOVE THE HANDLE. Remove the handle by removing the screw holding the faucet in place.
3. REMOVE THE VALVE. ...
4. REMOVE THE OLD VALVE SEAT. ...
5. INSTALL THE NEW SEAT. ...
6. REASSEMBLE THE FAUCET.

How do you check a valve seat?

So to test the seat, take a new valve–or one that you are certain is good–install it in the guide, give it a good push and see if it bounces back off the seat. A bad seat tends to damp the action, so the valve will feel like it sticks in the seat.
