The increase in x-ray tube voltage increases the amount of radiation coming out of the x-ray tube, as well as the average photon energy (i.e., increased penetration).

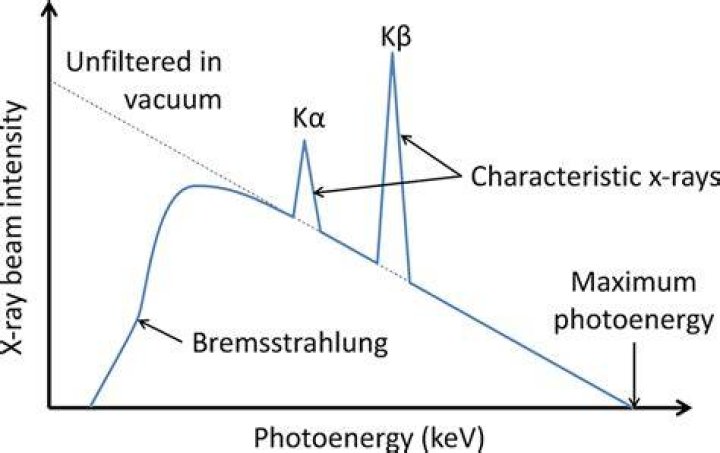

What happens to the x-ray spectrum when the voltage is increased?

All Answers (5) The increase in x-ray tube voltage increases the amount of radiation emitted out of the x-ray tube, as well as the average photon energy (i.e., increased penetration).

What effect voltage and current have on the production of X-rays in x-ray tubes?

Increasing the tube current (low voltage one!) Increases the rate of thermionic emission - more electrons hit the target - more X-rays produced.

What changes by increasing voltage on electrodes of x-ray tube?

Hazards of X-ray production from vacuum tubes

The higher the voltage, the more penetrating the resulting radiation and the more the hazard.

Why is high voltage needed in X-rays?

Radiation-producing devices produce X-rays by accelerating electrons through an electrical voltage potential and stopping them in a target. Many devices that use a high voltage and a source of electrons produce X-rays as an unwanted byproduct of device operation.

During the X-Ray emission , if the voltage is increased

How much voltage is required for an xray?

To generate this stream of electrons inside the x-ray tube, a powerful x-ray generator first takes the regular alternating current (AC) electricity from the power line at about 120 to 480 volts and transforms it into power in the range of 35 to 150 kilo volts (kV or thousands of volts).

How are X rays produced in an x-ray tube?

X-rays are commonly produced in X-ray tubes by accelerating electrons through a potential difference (a voltage drop) and directing them onto a target material (i.e. tungsten). ... The X-ray photons produced in this manner range in energy from near zero up to the energy of the electrons.

What is cathode in xray tube?

The cathode is part of an x-ray tube and serves to expel the electrons from the circuit and focus them in a beam on the focal spot of the anode. It is a controlled source of electrons for the generation of x-ray beams.

What causes most x-ray tube failures quizlet?

The target of an x-ray tube is made from what metal? ... What causes most x-ray tube failures? Excessive heat. What type of primary radiation is produced when the x-ray tube voltage is below 70 kVp?

What happens to the electrons in the x-ray tube?

In a typical vacuum x-ray tube, electrons accelerated from a heated cathode toward a metal anode by a large potential difference. Changing the filament temperature changes the electron current — a hotter cathode releases more electrons than a cold one. This determines the intensity or "brightness" of the x-ray beam.

How is an x-ray image produced?

X-rays are a form of electromagnetic radiation, similar to visible light. ... If x-rays travelling through the body also pass through an x-ray detector on the other side of the patient, an image will be formed that represents the “shadows” formed by the objects inside the body.

How are x-ray produced quizlet?

X-rays are produced within an x-ray tube. The x-ray tube is provided with its high voltage electrical supply by an x-ray generator. An x-ray tube is a vacuum device within which electrons are accelerated into a metal target. Some of the interactions between the electrons and the metal target result in x-ray emission.

What happens to an X-ray spectrum when the current is changed?

As the tube current (mA) increases, the number of incoming electrons striking target increases. In addition the number of X-ray photons produced in both Bremsstrahlung and characteristic x-ray portions of x-ray spectrum is altered. ... Eg: if we double the tube current (mA) the number of the x-ray photons will be doubled.

How does changing the x-ray tube kVp affect the number of X rays reaching the detector?

An increase in kVp extends and intensifies the x-ray emission spectrum, such that the maximal and average/effective energies are higher and the photon number/intensity is higher.

When the kVp is increased x-ray quantity?

When the kVp is increased, x-ray quantity: Increases in proportion to kVp2. When distance is increased, x-ray quantity at that distance: Decreases in proportion to distance squared.

What causes most x-ray tube failure?

Temperature range

The most frequent mode of failure of an x-ray tube is the failure to adequately dissipate the heat generated during normal operation. It is well known that 99%+ of the kinetic energy imparted on the electron beam is lost in the form of heat at the anode target.

What are three major causes of x-ray tube failure?

The best that can often be done is to extrapolate to a cause. A common failure for relatively long lived tubes is arcing. The most common proven causes of arcing are: high residual gas pressure, degradation of insulators and spurious electron emission (commonly called “field emission”).

What type of primary radiation is produced when the x-ray tube voltage is below 70 kVp?

Every x-ray exposure will contain photons produced from bremsstrahlung interactions in the anode. Below 70 kVp, 100% of the photons in the x-ray beam are from bremsstrahlung interactions. Above 70 kVp, about 85% of the beam is bremsstrahlung.

What is a cathode filament?

1. A negatively charged electrode, as of an electrolytic cell, storage battery, diode, or electron tube. 2. The positively charged terminal of a primary cell or a storage battery that is supplying current.

What is filament in xray tube?

The purpose for the filament cut is to guide the electron stream to the target area on the anode. Because of the tremendous amount of heat that is generated at the cathode, the structure is made of molybdenum nickel alloy which has excellent thermal qualities.

Why are X-rays called X-rays?

Where does the "X" in "X-ray" come from? The answer is that a German physicist, Wilhelm Roentgen, discovered a new form of radiation in 1895. He called it X-radiation because he didn't know what it was. ... This mysterious radiation had the ability to pass through many materials that absorb visible light.

How does the X-ray work?

An X-ray is produced when a negatively charged electrode is heated by electricity and electrons are released, thereby producing energy. That energy is directed toward a metal plate, or anode, at high velocity and an X-ray is produced when the energy collides with the atoms in the metal plate.

What is required to make xrays?

The three things needed to create x-rays are a source of electrons, a means of accelerating the electrons to high speeds, and a target for the accelerated electron to interact with. X-rays are produced when the free electrons cause energy to be released as they interact with the atomic particles in the target.

What does increasing kVp do?

The higher the kVp, the more likely the x-ray beam will be able to penetrate through thicker or more dense material. Low kVp photons are weak and easily absorbed by body tissues or filters that have been placed.
