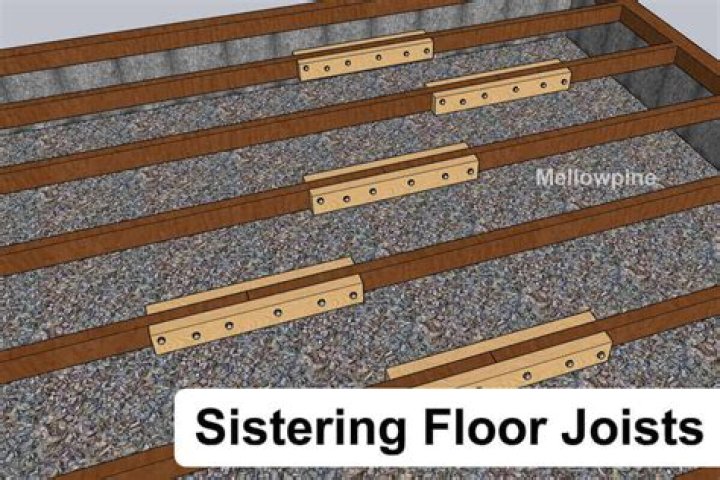

Sistering joists means beefing them up with additional material. Doing so strengthens weak joists and can help straighten sagging joists. Framing lumber is the typical choice for sistering material, but engineered lumber products actually add more stiffness than dimensional lumber.

Does Sistering joists increase load capacity?

The main reason for sistering a joist is to increase the moment capacity (strength) of the joist.

Are sister joists OK?

To fix a damaged band joist, the best method is called “sistering.” This means a healthy board is placed next to the damaged section, and the two are attached. Sistering allows the healthy board to take on the load-bearing function, without risking any damage to the overall structure by trying to remove the band joist.

How long should a sister joist be?

If a crack or sag is isolated to one area, the sister joist should extend at least 3 ft. on both sides of the problem area. But it's usually best to run the sister joist over the entire span. When the sagging joists are level, apply a generous bead of construction adhesive to the existing joist.

Do you need to sister every joist?

Even if the old joist does not bear to that extent, the new joist must. You also must have sistered joists if there is a perpendicular header longer than 4' attached to the joist. This is often found when joists cannot run the length from bearing wall to beam due to stairs.

Sistering and Leveling Floor Joists - Master Bathroom Remodel Pt 03

Can I use screws to sister joists?

RE: Screws for joist sistering

The glue will be absolutely necessary to prevent squeaks from the joists rubbing together. I recommend you use polyurethane construction adhesive like Loctite PL Premium. That stuff is awesome!

Can you use plywood to sister joists?

Sistering joists helps prevent floors from bouncing as you walk across them. The technique also helps shore up damaged or undersized joists. Either framing lumber or strips of 3/4-inch plywood may be used for the sister joist.

What size bolts to sister joists?

Ideally, the sister joint should be both glued with construction adhesive and bolted through with at least 3/8” diameter bolts, forming a “W” pattern, with the bolts spaced about 8” apart. This should extend through the entire three feet of wood that is on either side of the damaged section.

Can you sister a joist with a smaller board?

Does adding a sister that is smaller than the original joist actually increase strength at all? Yes. They will both bear the load.

What do you put on sister floor joists?

Apply a bead of construction adhesive in an “S” pattern along the length of a joist. Space the loops of the “S” about 6 to 8 inches apart. The adhesive strengthens the bond between the existing joist and its sister, and it prevents the two boards from squeaking as they move, says Home Affluence.

Can I Sister rafters?

Sister refers to attaching an additional framing member alongside an existing member. With roofs, this is done to improve the load value of rafters when installing roof-mount air conditioning equipment or cutting openings for skylights. In some cases, you may sister rafters to repair a sagging roof.

What wood is used for Sistering joists?

The typical choice for sistering material is framing timer or engineered timber products such as plywood. The first step to take is to remove any obstructions, such as electrical cables, pipes, and so on. If this is too difficult the new joists can be notched, although this may mean that are not as strong.

Can you bolt joists together?

Multiple joists shall be securely fixed together.

Joists can be doubled or tripled up to provide additional support, e.g. for lightweight partitions or to form trimmers. The design should specify how the joists are fixed together and be in accordance with manufacturer's recommendations.

How do you strengthen joists?

As incremental parts of a building's structure, joists are not easily replaced. You can, however, strengthen the joists by securing another length of wood to the existing joist, called "sistering," or reduce wobbly floors with block inserts between the joists, called "blocking."

How do you stiffen joists?

Stiffening the underside

Tom bonds the two together with construction adhesive and sinks a 12d nail up through the 2x4 every 8 to 12 inches. Use a temporary 2x4 post at the midpoint of the span to support the joist until the adhesive cures (usually in 24 to 48 hours).

Are squeaky floors a structural problem?

Are squeaky floors a structural problem? There's no need to panic. In real life, a creak or squeak is no big deal—that is, they don't signal structural damage, like termites, that could cause your floor or joist to collapse. And fixing creaky floors is fairly simple.

Does insurance cover floor joists?

Wood rot damage: Does homeowners insurance cover rotting wood? Wood rot or floor joist rot is typically not covered by a homeowners insurance policy. ... If the rot occurs as a result of a peril that is covered by your homeowners insurance, you might be in luck.

Can you replace floor joist without removing floor?

In cases where a joist is intact, it's possible to sister a new joist alongside with construction adhesive and lag bolts. However, when a joist loses structural support, it has to be removed and replaced. Unless the subfloor can be removed, you access the joist through a crawl space.
