3 Answers. The neutral and ground MUST NOT be bonded at a sub-panel. They should only be bonded at the main service panel. If you bond them anywhere other than the main service, the neutral return current now has multiple paths, including though your ground wire.

Do I need to run a ground wire to my sub panel?

The neutral and ground cannot be bond at a sub-panel. The main service panel is where they should be bonded. ... The sub-panel ground must be connected to the ground wire from the house. The ground rods should be tied to the sub-panel ground since it is a detached building.

How do you ground a subpanel?

Rule #3: In a subpanel, the terminal bar for the equipment ground (commonly known as a ground bus) should be bonded (electrically connected) to the enclosure. The reason for this rule is to provide a path to the service panel and the transformer in case of a ground fault to the subpanel enclosure.

Why don't you ground a subpanel?

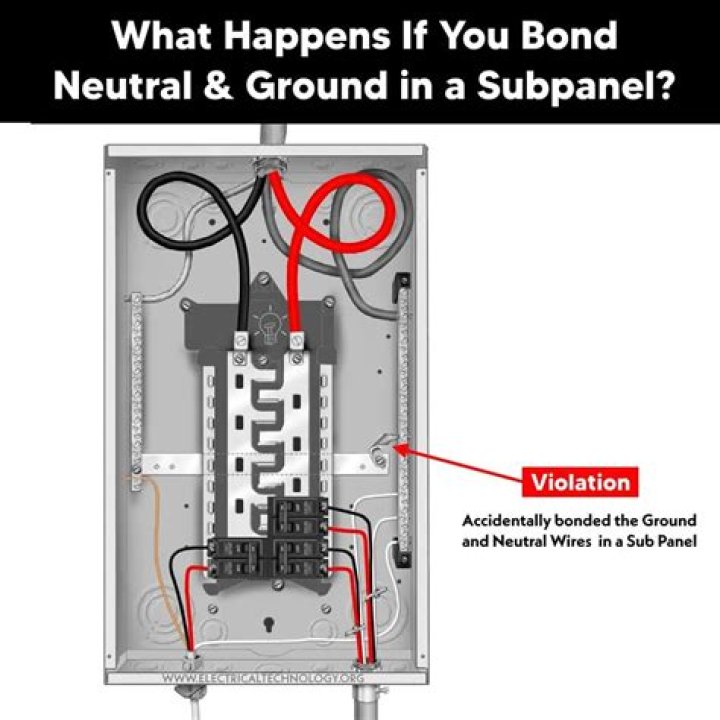

With ground and neutral bonded, current can travel on both ground and neutral back to the main panel. If the load becomes unbalanced and ground and neutral are bonded, the current will flow through anything bonded to the sub-panel (enclosure, ground wire, piping, etc.) and back to the main panel. Obvious shock hazard!

Can ground and neutral be on same bar in subpanel?

When Should Grounds & Neutrals Be Connected in a SubPanel? The answer is never. Grounds and neutrals should only be connected at the last point of disconnect. This would be at main panels only.

Why Neutrals and Grounds are Separated in a Sub Panel

How do you separate neutral and ground in a subpanel?

The grounds should always go on the bar which is connected directly to the metal box. The neutrals go on the bar(s) which are insulated from the box. There is then a bonding screw and/or strap which must be removed to isolate the neutral bar from the box.

What size ground wire do I need for a 100 amp subpanel?

You are correct that for a 100A feeder, the associated ground wire needs to be an 8AWG copper or 6AWG aluminum wire.

How high off the ground does a sub panel have to be?

All electrical panels must have a minimum of 36 inches of clearance in front of the panel, 30 inches of clearance across the face of the panel, and a minimum of 78 inches above the floor from the top edge of the panel.

Should neutral and ground be bonded?

Whenever you have an auxiliary panel the neutral and ground should not be tied together because the ground wire becomes a parallel path for current with the neutral wire (any current going through the neutral wire will be shared with the ground wire because they have the same connections at both ends).

Why are neutrals and grounds separated in a subpanel?

Grounds and neutrals were isolated to provide separate paths back to the panel. Another way to wire a subpanel was with a three-wire feed; two hots and a neutral, with grounds and neutrals connected together at the subpanel.

Can I run a sub panel from a sub panel?

Yes, you can. The systematic computer programmer in me even thinks it's a good idea, allowing a "star" topology for electrical distribution. You will need 4 wires, as others have mentioned. Keep the ground and neutral separate in the subpanels.

What happens if the neutral isn't bonded at the panel?

Without a neutral-ground bond, it will be efficiently carried to every device, even the ones that are "turned off" - neutral isn't switched. Remember, hot and neutral are not isolated -- they are bonded, with a bias. A 120V bias assuming the transformer is turned on. A transformer winding has very low resistance.

What happens if neutral is not grounded?

Grounding neutral provides a common reference for all things plugged into the power system. That makes connections between devices safe(r). 2. Without a ground, static electricity will build up to the point where arcing will occur in the switchgear causing significant loss in transmitted power, overheating, fires etc.

What happens if neutral touches ground?

The neutral is always referenced to ground at one, and ONLY one, point. If you touch the neutral to ground anywhere else, you will create the aforementioned ground loop because the grounding system and the nuetral conductor are now wired in parallel, so they now carry equal magnitudes of current.

How far does an electrical panel need to be from a pool?

Electrical Outlet Receptacles

Outlet receptacles for general use can be no closer than 20 feet from a pool or in-ground spa if they are not GFCI-protected, and no closer than 6 feet away if they are GFCI protected.

What is the standard height of panel board?

The actual panelboard height is 5 feet, 4 inches, but it is mounted 20 inches from the floor. The top of the panelboard is 84 inches (7 feet) above the floor. In this installation, no circuit breaker (in its highest position) is more than 6 feet, 7 inches above the floor.

Can you run a 100 amp sub panel off a 100 amp main panel?

To the best of my understanding, there is no code issue running a 100A subpanel off a 100A main panel, so long as the wire size is correct, and the installation is correct. For a subpanel, you need four wire service (two hots, a neutral, and an equipment ground).

Can I run a 100 amp sub panel off 200 amp main?

Can I place a 100 amp breaker in a 200 amp panel? Yes, a 100 amp breaker can be placed in a 200 amp panel. The highest amperage allowed is the rating of the panel. If you want, you can use a smaller breaker and smaller amperage.

How many amps can a 100 amp panel handle?

Depending on how the 100- amp panel was manufactured, you can install breakers between 20-24 (minimum) and 30-42 circuits (maximum). If the 32-space model is what you need, a circuit panel like GE PowerMark Gold is efficient.

How do you wire a subpanel to a separate building?

Connect the bare wire to the ground strip in the subpanel. Strip back the white wire and connect it to the neutral bus strip. Connect the red and black wires to the two screws on the hot bus strip of the subpanel. Tighten all the screws to hold the wires in place, then attach the subpanel cover.

What is the difference between grounding and bonding?

Bonding is the connection of non-current-carrying conductive elements like enclosures and structures. Grounding is the attachment of bonded systems to the earth. Both are necessary to safeguard people and property from electric hazards.

How do you know if neutral is bonded to ground?

First check for voltage between the neutral and ground bar. If the voltage is more than a few millivolts you probably don't have a bond but zero volts doesn't mean you are bonded.

Can I run a 60 amp sub panel from 100 amp main?

You can feed a 100 Amp panel with a 60 Amp breaker. Keep in mind that the sub panel needs to be rated above the breaker size.
