Oil-immersion objectives should be used with coverslip-thick glass (or optically equivalent plastic) to achieve their best imaging performance. ... This can be easily done by turning the glass slide over and viewing the cells through the 1-mm thick slide, with the coverslip facing away from the objective.

What are the rules for using oil immersion?

Using immersion oil

Place a drop of immersion oil on the cover slip over that area, and very carefully swing the oil immersion lens into place. Focus carefully, preferably by observing the lens itself while bringing it as close to the cover slip as possible, then focusing by moving the lens away from the specimen.

What precautions should be taken when using immersion oil?

Immersion oil should be cleaned from lens and slide surfaces when observations are complete. Oil left on lens surfaces will eventually dry and be very difficult to remove. 1. Carefully wipe oil from all glass surfaces with a folded piece of clean lens paper.

What objective requires a cover slip?

High resolution imaging, meaning imaging with a 40X, 60X or 100X oil immersion objective at a numerical aperture greater than 1.0, must be performed through a number 1 1/2 coverslip.

Do I need a coverslip?

Many of the lenses are made with the refractive index of a coverslip factored into where their focal point is, so even if you just want to wet mount something, you still need a coverslip on it. It also keeps the specimen from drying out by preventing evaporation when exposed to the heat of the lamp on the scope.

How To Use Immersion Oil

Why is a coverslip necessary?

The main function of the cover slip is to keep solid specimens pressed flat, and liquid samples shaped into a flat layer of even thickness. This is necessary because high-resolution microscopes have a very narrow region within which they focus. The cover glass often has several other functions.

Why do you need to use a coverslip?

When viewing any slide with a microscope, a small square or circle of thin glass called a coverslip is placed over the specimen. It protects the microscope and prevents the slide from drying out when it's being examined.

What are the three main reasons for using a coverslip?

This smaller sheet of glass, called a cover slip or cover glass, is usually between 18 and 25 mm on a side. The cover glass serves two purposes: (1) it protects the microscope's objective lens from contacting the specimen, and (2) it creates an even thickness (in wet mounts) for viewing.

What is the thickness of coverslip?

Standard cover slips have a thickness of 0.13-0.16mm, taking into consideration the added layer of an embedding medium or water into account in the sample results in meeting the rule of 0.17mm.

What is meant by coverslip?

cover slip. noun. a very thin piece of glass placed over a specimen on a glass slide that is to be examined under a microscope.

What is the purpose of stage clips?

Stage clips hold the slides in place. If your microscope has a mechanical stage, the slide is controlled by turning two knobs instead of having to move it manually.

What is the purpose of placing immersion oil on the slide?

In microscopy, more light = clear and crisp images. By placing a substance such as immersion oil with a refractive index equal to that of the glass slide in the space filled with air, more light is directed through the objective and a clearer image is observed.

Why is immersion oil necessary when using the 100x objective?

The 100x lens is immersed in a drop of oil placed on the slide in order to eliminate any air gaps and lossof light due to refraction (bending of the light) as the light passes from glass (slide) → air →​​​​​​​ glass (objective lens).

When oil immersion is used it is placed?

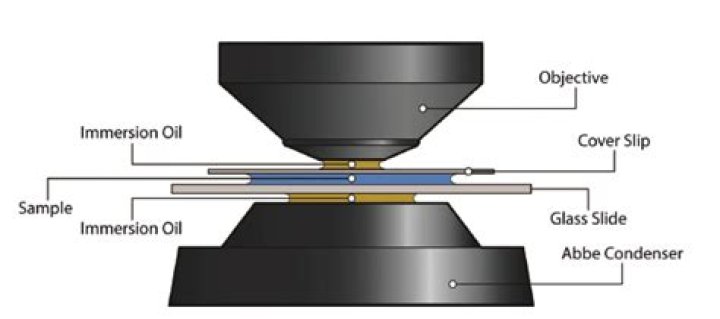

In light microscopy, oil immersion is a technique used to increase the resolving power of a microscope. This is achieved by immersing both the objective lens and the specimen in a transparent oil of high refractive index, thereby increasing the numerical aperture of the objective lens.

Can you use 100x objective without oil?

Never use the 100x objective without using immersion oil. When you have correctly brought your slide into focus up to 40x (step 3), then: a. Turn the nosepiece half-way between the 40x and 100x objectives.

What are the 3 rules in carrying the microscope?

• Do not touch the glass part of the lenses with your fingers. Use only special lens paper to clean the lenses.
• Always keep your microscope covered when not in use.
• Always carry a microscope with both hands. Grasp the arm with one hand and place the other hand under the base for support.

Can you use a slide as a cover slip?

Standard slides can be either plastic or glass and are 1 x 3 inches (25 x 75 mm) in size and 1 to 1.2 mm thick. Wet slides will use a cover slip or cover glass, a very thin square piece of glass (or plastic) that is placed over the sample drop.

What should be the ideal size of cover slip?

The examination's screening test is restricted to slides with coverslips of 40 × 22 mm.

What is the difference between a slide and a coverslip?

As nouns the difference between slide and coverslip

is that slide is an item of play equipment that children can climb up and then slide down again while coverslip is a thin glass plate used to cover samples mounted on a microscope slide.

Why is it important to put a cover slip over a drop of water when you prepare a wet mount?

Why is it important to put a coverslip over the drop of water when you prepare a wet mount? The water also helps the light to pass through the specimen more evenly. To protect the specimen in the water drops on the slide, you must cover it with a very thin piece of glass called a coverslip.

Are coverslips reusable?

Glass cover slips should be handled carefully as they are very fragile and break easily. ... With extreme care, glass cover slips can be rinsed and reused many times.

Why does the specimen need to be thin?

Explanation: A specimen being viewed under a microscope should be thin so that light can pass, Otherwise the light cannot get through the specimen. If they were not thin enough for light to pass through them, they would not be visible under a compound microscope.

When cleaning immersion oil for 100x lens what should be used?

If you are using a 100x objective with immersion oil, just simply wipe the excess oil off the lens with a kimwipe after use. Occasionally dust may build up on the lightly oiled surface so if you wish to completely remove the oil then you must use an oil soluble solvent.
