The relationship between resistance and wire length is proportional . The resistance of a thin wire is greater than the resistance of a thick wire because a thin wire has fewer electrons to carry the current. The relationship between resistance and the area of the cross section of a wire is inversely proportional .

Why is there less resistance in a thicker wire?

The larger the cross sectional area, the lower the resistance since the electrons have a larger area to flow through. This will continue to apply no matter how thick the wire is. The electron flow will adjust itself to whatever the wire thickness is.

Does heavier gauge wire have more resistance?

The most basic explanation on why wire gauge matters is because the thinner a wire is (higher gauge) the more resistance there will be to the flow of current. More resistance means more energy loss, which means weaker/less reliable detections.

Are thicker wires more efficient?

The thin wire will conduct electricity, but there is more electrical resistance. The thicker wire is like the four lane highway. There's a lot less electrical resistance, and as a result, that light bulb burns brighter because more electricity can reach it.

Does thicker wire carry current?

The larger diameter of the bigger wire offers more area for electrons to move through the circuit. For this reason, smaller gauge wire is rated for lower amperage (electric current) limits than larger gauge wire. The smallest size of common household wire can carry 15 amps of current.

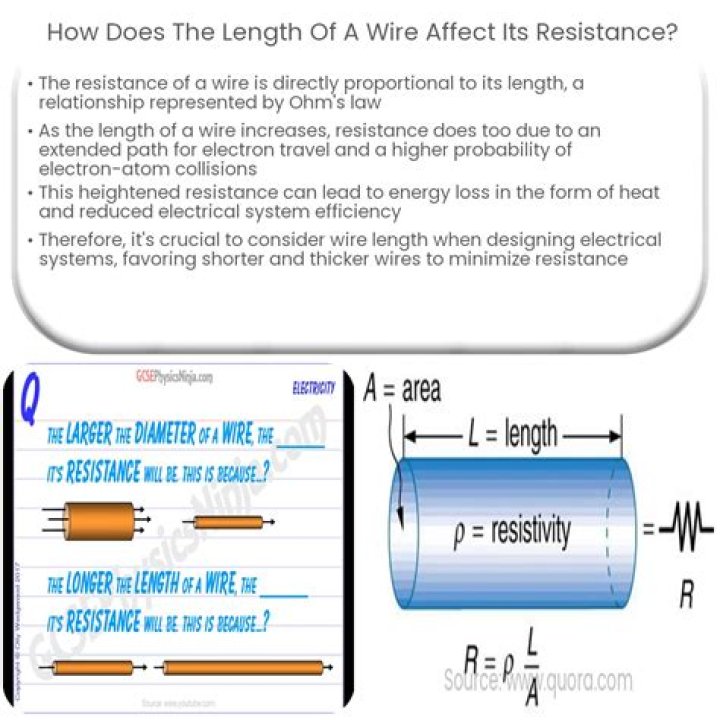

Electrical Resistance of Thin vs Thicker Wires

Does thicker wire cause voltage drop?

Causes of Voltage Drop

For example: Higher gauge (thinner) longer wires will have a higher drop rate than shorter wires that are a smaller gauge (thicker). This is because the resistance of a wire is based on its cross-sectional area over a distance.

Does wire thickness affect resistance?

The relationship between resistance and wire length is proportional . The resistance of a thin wire is greater than the resistance of a thick wire because a thin wire has fewer electrons to carry the current. The relationship between resistance and the area of the cross section of a wire is inversely proportional .

What will happen if we use thick wire?

The bulb will not function properly. This is because the resistance of a thick wire is less than that of a thin wire. The filament should be having a high resistance in order to glow, which will definitely get reduced if we use a thicker wire.

Do wires have resistance?

The resistance of a wire is directly proportional to its length and inversely proportional to its cross-sectional area. Resistance also depends on the material of the conductor. See resistivity. The resistance of a conductor, or circuit element, generally increases with increasing temperature.

Can a wire be too thick?

There is a point where thick wire simply takes up too much space. (think a 0 gauge bus of 50 wires) For most wiring, you don't have any use for wire a size or two larger than needed. To answer your question, too thick is not much of a problem at all, but not budget friendly.

Which wire has less resistance a hot wire or a cold wire?

A cooler wire has less resistance than a warmer wire. Cooler particles have less kinetic energy, so they move more slowly. Therefore, they are less likely to collide with moving electrons in current.

What increases wire resistance?

length - longer wires have greater resistance. thickness - smaller diameter wires have greater resistance. temperature - heating a wire increases its resistance.

Which has less electrical resistance a thin wire or a thick wire?

Resistance is inversely proportional to area of cross section. ... thin wire has small area of cross section while thick wire has large area of cross section. Thus thick wire will have less electrical resistance.

Why do hot wires have more resistance?

Heating a metal conductor makes it more difficult for electricity to flow through it. ... Heating the metal conductor causes atoms to vibrate more, which in turn makes it more difficult for the electrons to flow, increasing resistance.

Does size affect resistance?

First, the total length of the wires will affect the amount of resistance. The longer the wire, the more resistance that there will be. ... Wider wires have a greater cross-sectional area. Water will flow through a wider pipe at a higher rate than it will flow through a narrow pipe.

Why do we use thick connecting wire?

The resistance of connecting wires should be almost negligible. For this thick wires are used . since a thicker wire has a small resistance and the wires are made of copper because the resistivity of copper is low.

What is the meaning of thick wire?

The original CSMA/CD standard specified a coaxial cable with an overall diameter of about 10 mm; this allowed data to be presented as a baseband signal at 10 Mbps, with a range of 500 yards, and is referred to as thick wire or 10base5 cable. ...

Will the current flow more easily through a thick wire or thin wire of the same material when connected to the same source Why?

The current will flow more easily through the thick wire than the thin wire. It is because the resistance of a conductor is inversely proportional to its area of cross-section. If the thicker the wire, the less is resistance and hence more easily the current flows.

What are the four things that affect the resistance of a wire?

• The type of material of which the resistor is made.
• The length of the resistor.
• The thickness of the resistor.
• The temperature of the conductor.

How the resistance of a wire changes if we replace the wire with a longer wire with a thicker wire with a wire of another material?

A thicker wire (of the same material) has lower resistance. Having a thicker wire means that the volume of conducting material has increased so there are more conduction electrons available. ... Therefore the resistance of that arrangement must be less than the single wire (half the resistance of the single wire).

Why does voltage increase with resistance?

In other words, the current is directly proportional to the voltage and inversely proportional to the resistance. So, an increase in the voltage will increase the current as long as the resistance is held constant. ... If the current is held constant, an increase in voltage will result in an increase in resistance.

Does higher voltage need thicker wire?

Over about 50 feet wire size needs to be increased to minimize voltage drop. But the higher the supply voltage the less this increase needs to be. (When you get into very high voltages -- tens of thousands of volts -- the wire diameter becomes important because a smaller wire results in more corona discharge.)

Does wire size affect voltage?

As a rule of thumb, when the wire length is increased, the wire gauge must be increased. Likewise, the lower your voltage, the larger your wire gauge must be. In any case, calculate the voltage loss and make your wire selection based on your findings.

What happens if wire gauge is too small?

What can happen when you use too small of wire size for your equipment? ... If too small of a size is used, the wire could melt because of the large amount of current flowing through it compared to how much the cables can handle. The smaller the wire diameter, the higher the resistance there will be to the flow of energy.
