The Pitch Circle Diameter (PCD) is the diameter of the circle which passes through the centre of all the studs, wheel bolts or wheel rim holes. The easiest way calculate the PCD is as follows: 1) Measure the distance 'S' between two adjacent studs from the centre of each hole.

What is pitch circle diameter used for?

Pitch Circle Diameter (PCD) – Gear Terminology

The pitch circle diameters are important numbers in locating the shafts of two mating gears. The center distance of two meshing gears is expressed as the sum of the pitch circle radii of the two gears.

What is pitch circle diameter of flange?

The PCD of a flange is one of the critical dimensions. PCD (Pitch Circle Diameter) is the diameter of a circle that goes through each of the bolt holes.

How do you find a pitch in a circle?

Circular pitch = π × module = π × 12 = 37.68 mm. Tooth thickness = ½ (circular pitch) = 18.84 mm.

How do you find the pitch circle diameter of a flange?

1. As accurately as you can, measure two adjacent holes using a varniar scale and calculate the PCD; then calculate for-
2. 4 holes: multiply by 1.414.
3. 8 holes: multiply by 2.613.
4. 12 holes: multiply by 3.864.
5. 16 holes: multiply by 5.126.

Calculate bolt (pitch) circle diameter

What is a pitch diameter?

PITCH DIAMETER-The basic thread pitch diameter is the diameter where the thread thickness is equal to the space between the threads. If the flats at the top and bottom of the thread are the same, the pitch diameter will coincide with the middle of the sloping side of the thread.

What is pitch diameter in gears?

PITCH DIAMETER (D) is the diameter of the pitch circle. In parallel shaft gears, the pitch diameters can be determined directly from the center distance and the number of teeth.

What is bolt circle diameter?

Bolt Circle Diameter (BCD) is the diameter of the circle that goes through the center of all of the bolts on your chainring. On bicycle chainrings, this dimension is usually measured in millimeters. ... On a chainring with 4 bolts, the BCD is the distance between two bolts across from each other.

Is PCD and BCD same?

Chainrings are sold by number of bolts and PCD or BCD, which is the same thing and stands for Pitch Circle Diameter or Bolt Circle Diameter. Easier than diameter to measure is the centre-to-centre distance between two adjacent bolts.

What is flange diameter?

d, flange diameter is measured between centers of opposite holes in the hub flange. It is usually between 38 and 67 millimeters. Note that it is NOT the outside diameter of the hub's flange. Left and right flange diameters are often, but not always, the same.

What is the meaning of pitch circle?

pitch circle. noun. an imaginary circle passing through the teeth of a gearwheel, concentric with the gearwheel, and having a radius that would enable it to be in contact with a similar circle around a mating gearwheel.

What is addendum and Dedendum in gear?

DEDENDUM Addendum is the height of the tooth above the pitch circle. Dedendum is the depth of the tooth below the pitch circle. ... Circular Tooth Thickness is the distance from a point on one side of a gear tooth to a corresponding point on the opposite side of the same tooth, measured along the pitch circle.

How do you find the diameter of a gear?

Root Diameter (df) is the diameter of the root circle; its value is: df = m (z – 2.5) or df = de – 2h. Center Distance (dc) is the distance between the shafts of the gear and the pinion; its value is: dc = (D + d) / 2, where “D” corresponds to the pitch diameter of the gear and “d” to the pitch diameter of the pinion.

What is the base circle of a gear?

Base circle: A theoretical circle used to generate the involute curve when creating tooth profiles. Center distance: The distance between the center shafts of two gears. Chordal addendum: The distance between a chord, passing through the points where. the pitch circle crosses the tooth profile and the tooth top.

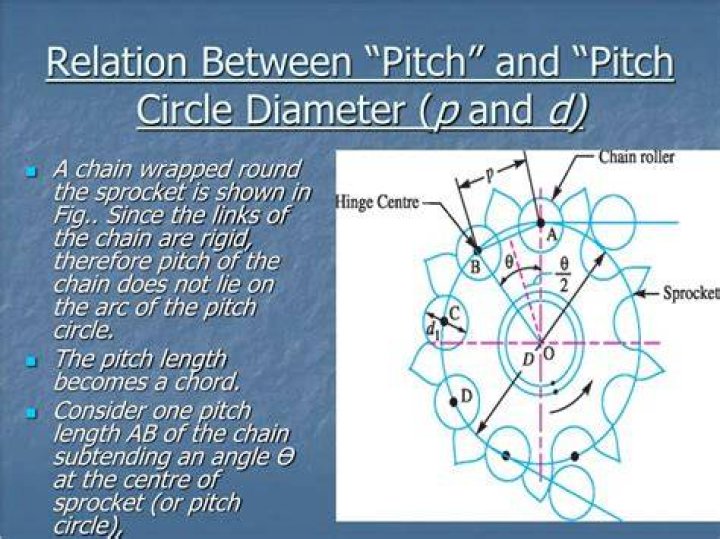

What is the pitch diameter of a sprocket?

The sprocket pitch diameter is an imaginary circle through which the chain pin centers move around the sprocket. The pitch diameter is the fundamental design geometry that determines the size shape and form of the sprocket teeth dimensions.

What is pitch diameter of a screw?

The pitch diameter (PD, or D₂) of a particular thread, internal or external, is the diameter of a cylindrical surface, axially concentric to the thread, which intersects the thread flanks at equidistant points, when viewed in a cross-sectional plane containing the axis of the thread, the distance between these points ...

What is pitch diameter of bearing?

TECHNICAL INFORMATION

Bearing pitch diameter d_p is the diameter of the circle that the center point of a ball travels during rotation of a bearing. Bearing pitch diameter d_p~ l_i + l_o. 2. Note: For pitch diameter calculations, use the land diameter values from the open (unshielded) bearing tables.

How do you measure the diameter of a hole?

So, the calculation of a hole size diameter differed for non-plated through holes and plated through holes. For a non-plated through-hole, the calculation is the sum of the finished hole size and +0.00mm/0mil. But, plated through-hole, on the other hand, is the sum of the finished hole size and +0.10mm/4mil.
