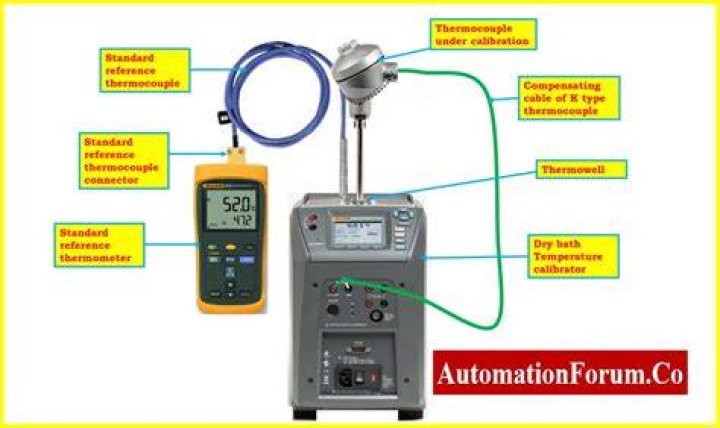

Calibration of thermocouples requires specialized equipment. ... When the temperature is at the desired level, the thermocouple to be calibrated is used to measure temperature along with a known accurate thermocouple. If the thermocouple needs calibration, the two thermocouples will show different readings.

Do thermocouples need calibration?

Thermocouples are a common type of temperature measurement device that is often more practical than a thermometer for temperature assessment. ... As a result, thermocouples need to be calibrated to produce interpretable measurement information.

How do I know if my thermocouple is accurate?

To determine the initial accuracy of a thermocouple, you simply determine the greater of the two tolerances given. Note that standard and special tolerances for thermocouples are determined using the same method. Multiply 300°C by ±0.0075 which gives ±2.25°C.

How do we calibrate thermocouple and thermistor?

Calibrating NTC thermistors consists of applying known temperatures and then adjusting circuit and software parameters based on measured responses. When it comes down to it, applying known temperatures is considered a two-step process. The first step in the process is to apply calibrated sensors to the system.

How do you increase the accuracy of a thermocouple?

You can improve sensor accuracy by using thermocouples constructed with Special Tolerance (also called Premium Grade) wire. The reduced error is achieved by using wire with higher purity alloys. At 500°F (260°C), the uncertainty of a Special Tolerance thermocouple is about ±2.0°F (1.1°C).

Thermocouple Calibrator vs Calibration: Know the Difference!

Why are thermocouples inaccurate?

Because a thermocouple measures temperature differentials, any temperature fluctuations around the reference junction (cold junction), which has the known temperature, result in an erroneous temperature reading.

What is the most accurate thermocouple type?

Accuracy: Type T thermocouples have the tightest accuracy of all the base metal thermocouples at ±1C or ±0.75% whichever is greater. This is followed by Type E (±1.7C or 0.5%) and Types J, K and N (±2.2C or 0.75%) for standard limits of error (per ANSI/ASTM E230).

Why do thermocouples need to be calibrated?

Thermocouples are made rugged and robust. They can withstand a wide range of temperatures. However, since the temperature measurement depends on the voltage, thermocouple calibration at regular intervals is necessary to ensure that the device can successfully recognize the voltage.

How do you calibrate a thermocouple temperature transmitter?

1. Remove the thermocouple transmitter terminal housing cover.
2. If the transmitter is already connected, remove all the thermocouple lead connections.
3. Determine the base and full scale temperatures. ...
4. Turn power supply on.

How many ohms should a thermocouple read?

A thermocouple should exhibit very low resistance. Attach the negative lead to the red wire, and the positive lead to the yellow. In this case, the reading will be about three ohms.

Can you test a thermocouple?

Use a small flame source to test a thermocouple with a multimeter. The thermocouple is a vital safety feature for many gas appliances. ... If the pilot goes out, the thermocouple can no longer send the millivoltage that is required to allow the gas valve to stay open, thus sealing the valve to prevent a dangerous gas leak.

What is meant by 3 point calibration?

A 3-point NIST calibration differs from a 1-point NIST calibration in the amount of points checked for their accuracy by a calibration lab, and thus the document that is generated. The 3-point calibration consists of a high, middle, and low check, and thus grants you proof of accuracy over a larger range.

What is meant by calibration?

Calibration is a comparison between a known measurement (the standard) and the measurement using your instrument. Typically, the accuracy of the standard should be ten times the accuracy of the measuring device being tested. ... In practice, calibration also includes repair of the device if it is out of calibration.

Can you calibrate your own TV?

TV calibration is the process of adjusting a TV's settings, often beyond what's in the user menus, so a TV looks its best. ... TV calibration isn't going to make a $500 TV look like a $2,000 TV, but it will make just about any TV or projector look the best it can. Understandably, it's usually done on expensive TVs.

How do we calibrate thermocouple?

A basic calibration process involves heating water to 30°C in a thermal bath. Next, each of two multimeter leads is attached to the free end (cold junction) of the thermocouple – at this point, the multimeter should register zero microvolts as both ends are at the same temperature.

How do you calibrate a temp transmitter?

calibrate the transmitter only by simulating the sensor and measuring the output current. calibrate the transmitter with the sensor connected into it. calibrate the whole temperature measurement loop from the sensor to the DCS/SCADA display.

How do you calibrate an electronic temperature transmitter?

1. Locate the RTD transmitter terminal by removing the housing cover.
2. If an RTD is already connected, remove all the RTD lead connections.
3. Determine the RTD resistance at the desired base(0°C) and full scale temperatures.
4. Turn the power supply on.

Do thermocouples age?

For the purpose of this article, aging in type K thermocouples is a phenomenon that occurs between 600°F (316°C) and 1,200°F (649°C). Aging will result in a slight increase in the temperature reading of a sensor.

What is the importance of calibrating a curve in thermocouple?

This is important to note because if a section of the thermocouple circuit is not homogeneous, it can result in a different voltage being generated leading to an overall error in measurement. Consequently, thermocouples require calibration to ensure accurate temperatures are derived.

What is the calibration temperature of gold in K?

From this, we extend the gold pressure‐calibration standard to cover the range 0–200 GPa in pressure and 300–3000 K in temperature.

What is the difference between K and J thermocouples?

Whereas a J Type Thermocouple is made up of iron and constantan, K type Thermocouples are composed of a nickel/chromium alloy (chromel) and a nickel/aluminium alloy (alumel) which gives them much better protection against oxidation and acidity than the iron limbs of the Type J.

Are there different thermocouples?

The American National Standards Institute (ANSI) and the ANSI-accredited American Society for Testing and Materials (ASTM) lists nine main thermocouple types: B, E, J, K, N, R, S, T, and C.

What is the difference between T type and K type thermocouples?

Type K thermocouple is used in furnaces with magnetic materials processed while type T thermocouples are used in atmospheres with inert pressures. ... Each type has it's own calibration curve (millivolts vs temperature) and almost all thermocouple readers are selectable for which type you use.
