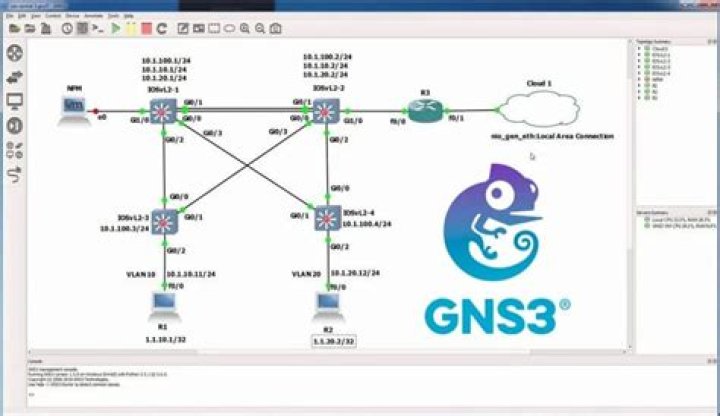

GNS3 support many switching options - they range from unmanaged switches, to Cisco IOS switches, to Datacenter Nexus switches, to Etherswitch modules and then emerging technologies such as OpenFlow and SDN. ... This is the official Cisco way of emulating a switch.

What kind of virtual devices can you use on GNS3?

If you decide to use the GNS3 VM (recommended), you can either run the GNS3 VM locally on your PC using virtualization software such as VMware Workstation, Virtualbox or Hyper-V; or you can run the GNS3 VM remotely on a server using VMware ESXi or even in the cloud.

Is GNS3 an emulator?

Graphical Network Simulator-3 (shortened to GNS3) is a network software emulator first released in 2008. It allows the combination of virtual and real devices, used to simulate complex networks. It uses Dynamips emulation software to simulate Cisco IOS. ... As of 2015, the software has been downloaded 11 million times.

How do I emulate a switch in GNS3?

1. Install gns3 ();
2. try to get the c3725-adventerprisek9-mz. 124-15. ...
3. open the gns3 and go to edit > symbol manager. Add the ethernet_switch, double click on it on right bar, and select router c3700 on type, apply, OK.
4. go to edit > ios images and hypervisors, add the right image and save.

Do I need VM for GNS3?

The GNS3 VM is recommended for most situations when you are using Windows or Mac OS. ... However, if you only want to create basic GNS3 topologies using Cisco IOS routers, a local (Dynamips) install will suffice. This means that you only install the GNS3 GUI (all-in-one).

GNS3 Installation

What is difference between simulator and emulator?

A simulator is designed to create an environment that contains all of the software variables and configurations that will exist in an application's actual production environment. ... In contrast, an emulator does attempt to mimic all of the hardware features of a production environment, as well as software features.

Which is better GNS3 or Packet Tracer?

GNS3 allows you take Routers CLI. It doesn't allow to take CLI of switch or any End User Devices. 2.1 Cisco Packet Tracer dont consume actual RAM of Device. 2.2 GNS3 Consume Actual RAM of your Device around 512 MB of Ram is consumed by each router.

Is GNS3 a hypervisor?

Now the Hypervisor Manager can only spawn Dynamips instances on the computer you are running GNS3 on. But GNS3 has the ability to orchestrate and manage connections between hypervisors on multiple computers. This is where the Edit | IOS images and hypervisors, [External hypervisors] tab comes in.

Can I use GNS3 for free?

The GNS3 network simulator is free, open source software that can be downloaded and used by anyone. You can access the download at this link. GNS3 works by using real Cisco IOS images which are emulated using a program called Dynamips.

What is the best network simulator?

• Cisco Packet Tracer.
• Boson NetSim.
• GNS3.
• VIRL.
• EVE-NG.

How do I add a layer 3 switch to GNS3?

To add L3 Switch, click the New button in the IOS Router templates window. In the IOS Image window, select New Image, then click Browse. Select the IOS you downloaded from the above button and click the Open button. The GNS3 program asks if you want to copy the IOS to the default image folder, click Yes.

Is using an emulator illegal?

Emulators are legal to download and use, however, sharing copyrighted ROMs online is illegal. There is no legal precedent for ripping and downloading ROMs for games you own, though an argument could be made for fair use.

Why real devices are better than emulators?

The real devices allow stringent Performance Testing issues like working with a real time transport application for 15 hours continuously, which cannot be successfully simulated by the emulators. It is easier to do web application testing when it comes to opening the web application.

When should I use virtualization vs emulator?

If you want the software to get out of the way, virtualization allows guest code to run directly on the CPU. Conversely, emulators will run the guest code themselves, saving the CPU for other tasks.

Why is GNS3 VM not green?

Go to GNS3 - Edit - Preferences - click on GNS3 VM on the left and change the port from 3080 to what you got above, again in my case 80. Apply and now your GNS VM should be green and you can add devices to your projects.

What is QEMU in GNS3?

Qemu is an open-source hardware-emulation and virtualization platform. The GNS3 project provides filesystem images of Qemu-compatible Linux systems that have open-source routing software installed. Qemu is available for the most common operating systems, Linux, Windows, and Mac OS.

What is Cisco c2600?

The Cisco 2600 series is an award-winning family of modular multiservice access routers, providing flexible LAN and WAN configurations, multiple security options, voice/data integration, and a range of high performance processors.

What is an EtherSwitch router?

Cisco® EtherSwitch® network and interface card modules are innovative solutions that can reduce total cost of ownership for customers by optionally integrating switch ports within a router. ... This approach reduces network complexity, IT staff training needs, equipment sparing requirements, and maintenance costs.

What is Cisco IOSvL2?

IOSvL2 is an implementation of Cisco IOS layer-2 switching code that runs as a full virtual machine. IOSvL2 images are based on the DSGS code branch and support up to 16 GigabitEthernet interfaces. IOSvL2 is primarily a Layer-2 switch, but Layer-3 control plane and data-plane functionality is also present in the image.
