Kirchhoff's rules can be applied to any circuit since they are applications to circuits of two conservation laws. Conservation laws are the most broadly applicable principles in physics.

Does Kirchhoff's rule always apply?

Kirchhoff's rules can be applied to any circuit, regardless of its composition and structure. Because combining elements is often easy in parallel and series, it is not always convenient to apply Kirchhoff's rules. To solve for current in a circuit, the loop and junction rules can be applied.

Are Kirchhoff rules applicable to both AC and DC?

Kirchhoff's laws are applicable for DC as well as AC circuits. They can be accurately used for DC circuits and low-frequency AC circuits.

Do Kirchhoff's rules apply to capacitors?

Kirchhoff's rules can be used to determine the potential difference and charge on the plates of a capacitor in any electric circuit.

Is Kirchhoff's law applicable to non linear circuit?

Linear circuits only. Both the linear and nonlinear circuits only. Passive time invariant circuits.

How to Solve a Kirchhoff's Rules Problem - Simple Example

Where is Ohm's law not applicable?

Detailed Solution. Ohm's law is applicable only to conductors and not to insulators. Even conductors like vacuum tubes, semiconductors, transistors, thermistors do not obey Ohm's law.

Which of current law is applicable to only?

Kirchhoff's law is applicable to the junction in a network. It is not applicable for time-varying magnetic fields. Kirchhoff's Current Law (KCL): This law is also known as junction rule or current law (KCL).

Can Kirchhoff's voltage law be applied to RC circuits?

Kirchoff's laws will be stated, and used to find the currents in a circuit. In addition, the equation for the time-constant of an RC circuit will be derived. When a battery is connected to a resistor, the battery will cause a current to flow through the resistor.

Does loop rule apply capacitor?

Kirchhoff's loop rule is an application of the conservation of energy. If you move through a circuit in a closed loop adding all voltages across the resistors and capacitor, you'll get a net change of zero voltage. ... When the capacitors are charged, the current stops flowing, which is the definition of steady state.

What is the principle of Kirchhoff's loop rule?

Kirchhoff's loop rule explains that the sum of all the electric potential differences nearby a loop is 0. Sometimes, we also refer to it as Kirchhoff's voltage law or Kirchhoff's second law. In other words, it states that the energy which the battery supplies get used up by all the other components in a loop.

What are the limitations of Kirchhoff's laws?

Limitations of Kirchhoff's Laws

The limitation of Kirchhoff's both laws is that it works under the assumption that there is no fluctuating magnetic field in the closed loop. Electric fields and emf could be induced which causes the Kirchhoff's loop rule to break in presence of a variable magnetic field.

What is the basis of Kirchhoff's current law and voltage law?

Kirchhoff's current law is based on the law of conservation of charge. Kirchhoff's voltage law is based on the law of conservation of energy.

Is KVL & KCL applicable to AC circuit?

Kirchhoff's laws can also be used in ac electric circuit analysis. With the basic KVL and KCL from dc circuit, we can modify those two to be used for a sinusoidal electric circuit.

Which circuit Kirchhoff's voltage law can be implemented?

We can use Kirchhoff's voltage law when analysing series circuits. When analysing either DC circuits or AC circuits using Kirchhoffs Circuit Laws a number of definitions and terminologies are used to describe the parts of the circuit being analysed such as: node, paths, branches, loops and meshes.

What is the practical application of Kirchhoff's law?

Kirchhoff's laws are used to help us understand how current and voltage work within a circuit. They can also be used to analyze complex circuits that can't be reduced to one equivalent resistance using what you already know about series and parallel resistors.

Is Kirchhoff's current law true?

So, for Kirchhoff's junction rule to hold true, the sum of the currents into point F must equal the sum of the currents flowing out of the junction at node E. ... Thus Σ_IN = I_T = 5 amperes and therefore Kirchhoff's current law holds true as this is the same value as the current leaving point A.

What principles are involved in junction rule and loop rule?

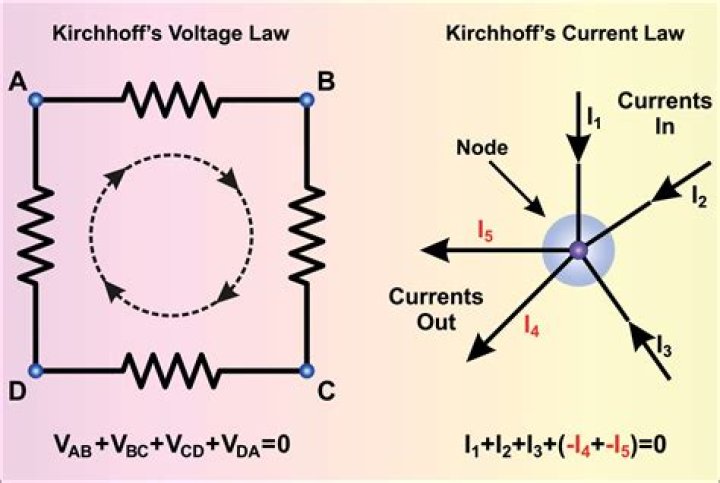

Kirchhoff's first rule—the junction rule: The sum of all currents entering a junction must equal the sum of all currents leaving the junction. Kirchhoff's second rule—the loop rule: The algebraic sum of changes in potential around any closed circuit path (loop) must be zero.

How do you find the voltage across a resistor in an RC circuit?

The equation for voltage versus time when charging a capacitor C through a resistor R, is: V(t)=emf(1−et/RC) V ( t ) = emf ( 1 − e t / RC ) , where V(t) is the voltage across the capacitor and emf is equal to the emf of the DC voltage source.

What is RC circuit and its function?

The RC circuit is used in camera flashes, pacemaker, timing circuit etc. The RC signal filters the signals by blocking some frequencies and allowing others to pass through it. It is also called first-order RC circuit and is used to filter the signals bypassing some frequencies and blocking others.

What are Kirchhoff's Three Laws?

Figure 3.6: The three conditions that give rise to the three Kirchoff's laws for the creation of a continuous, absorption, and emission spectrum. Like Kepler's laws of planetary motion, these are empirical laws.

What is Kirchhoff's second law of electrical circuits?

Kirchhoff's second law, also known as the Kirchhoff's voltage law (KVL) states that the sum of all voltages around a closed loop in any circuit must be equal to zero. This again is a consequence of charge conservation and also conservation of energy.

Which of the following cases is Ohm's law not applicable?

4. In which of the following cases is Ohm's law not applicable? Explanation: According to Ohm's law, it is applicable only to conductors. Hence, Ohm's law is not applicable in case of insulators.

Is ohms law applicable to Mica?

The property of a substance due to which it opposes the flow of current through it is called resistance. e.g. silver, copper, mercury, carbon, mica, etc. The substances which do not obey ohm's law are called nonohmic or nonlinear conductors.
